Description

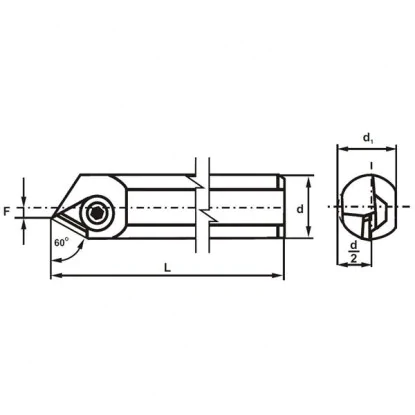

Technical data of the folding knife CTAPR 0025Q16
- minimum hole Dmin=185 mm,
- diameter of the shank d=20 mm,
- total length L=180,
- distance from hole axis F=12,0 mm,
- width d1=22.5 mm,
- attachment angle - 90 deg.
Turning knife CTAPR 0025 Q16
High-qualityfolding turning knife CTAPR 0025Q16 -Fixing SYSTEM "C" - positive or negative knife geometry.
Interchangeable inserts single-sided (insert application angle equal to 11°) or double-sided (insert application angle equal to 0°), square and triangular, with a flat contact surface, fixed on the contact surface by a screw head that presses the insert through a carbide chipbreaker laid on it. CTAPR 0025Q16 knives with inserts clamped in the "C" system are used for roughing (negative geometry) and finishing (positive geometry) of external surfaces and holes (positive geometry).
The "C" system is characterized by easy insert change and good repeatability of the blade position. The superimposed chipbreaker makes clamping more difficult, but gives the possibility to adjust the position of the chipbreaker edge.
* The cutting insert shown in the picture is not included in the turning knife, it must be purchased separately.
