Description
Technical data of lathe knife SSDCN 25x25
- width of shank h - 25 mm
- width b- 25 mm,
- total length L - 150 mm,
- working height f - 12,5 mm
Folding turning knife SSDCN 25x25-12
Insert clamping system - "S"
Most external turning knives, positive or negative boring knives geometry of knives.
Single-sided interchangeable inserts clamped on the surface of the tapered-arc bore with a countersunk screw.
The "S" system is the most common system of fixing indexable inserts. It is characterized by simplicity, high reliability, very good repeatability of the blade position and the ability to mount inserts of small dimensions.
The main area of application for SSDCN 25x25-12 folding knives with inserts clamped in the "S" system is finishing of external surfaces and hole surfaces (especially holes with small diameters), but they are also used for roughing.

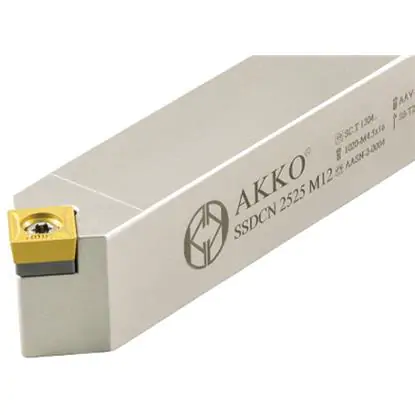

* The cutting insert shown in the picture is not included in the lathe cutter, it must be purchased separately.
